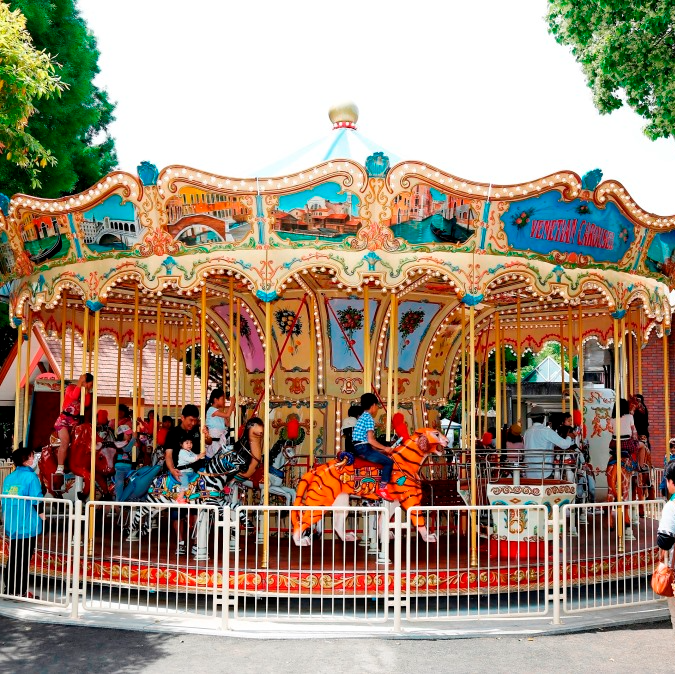

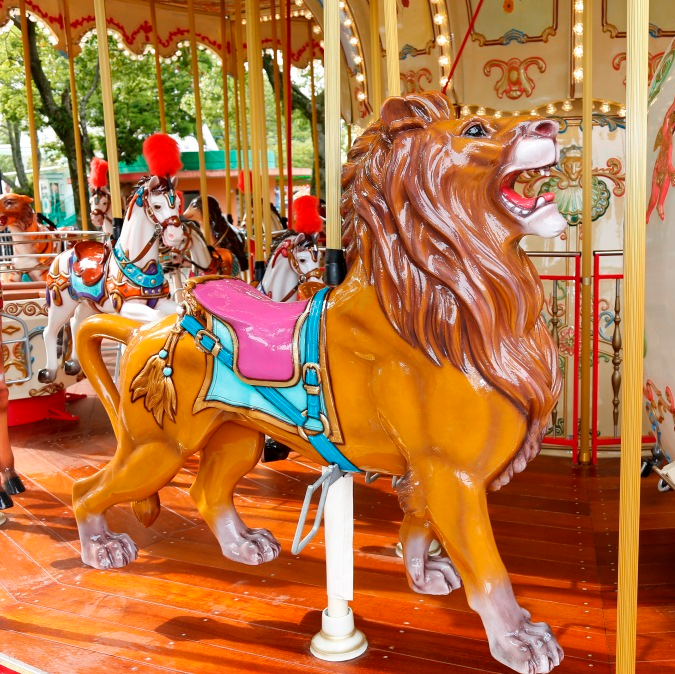

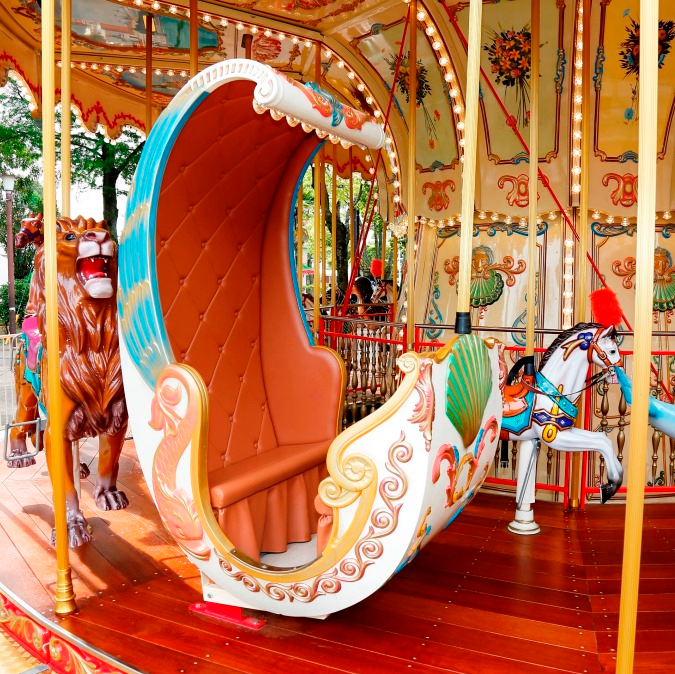

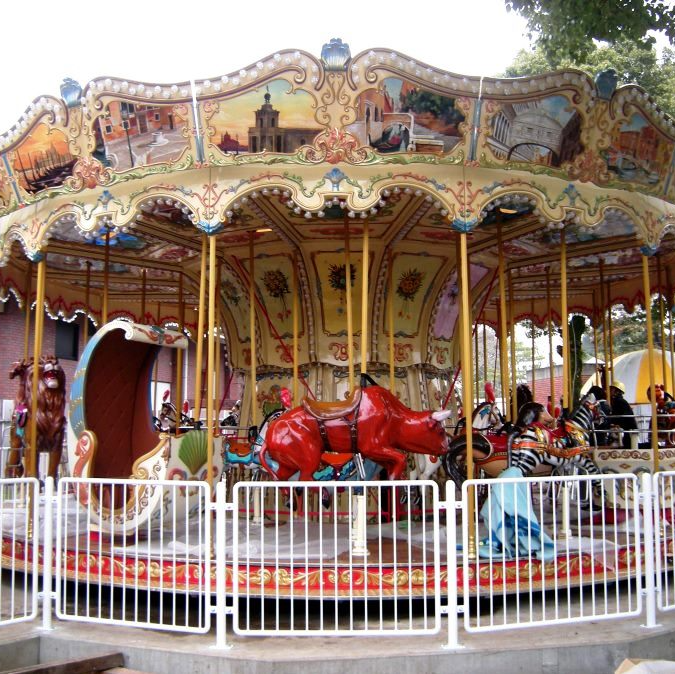

Single Decker Horses Merry-go-Round after the 18th century fashion. The carousel consists of an hot-dip galvanised rotating structure supported by a central column and covered by hand decorated fibreglass panels on which lighting is fixed. The floor structure is suspended from the ground by tie-bars hanged to the roof and the floor surface consist of clear coated solid hard-wood panels. The driving unit consist of AC self-braking gear-motor mounted to the central column and electronically controlled. All Jumping horses and the rocking chariot are moved by ball bearing mounted crankshafts located on the ceiling.

Minimum dimensions: Diameter m. 11 (36’1”) - Height m 6,3 (20’8)
Maximum capacity: 57/63 passengers (Adults / Children)
Maximum passengers/hour: 1080 passengers/hour (3,5 min. cycle)
Power Requirements: Total maximum power 27 kW (23 kW Lighting - 4 kW Motive Power)
